DS-1800
Central Monitor

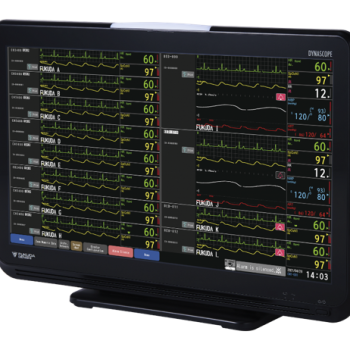

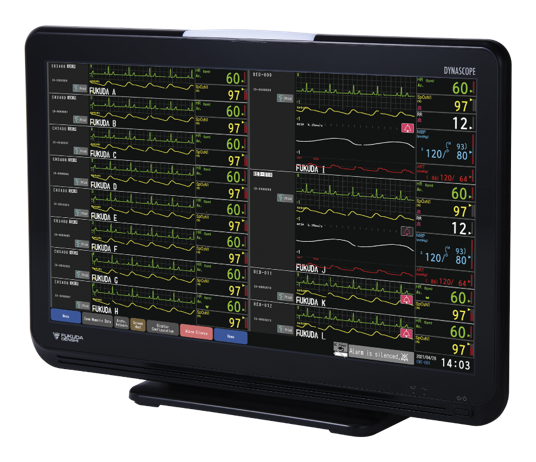

DYNASCOPE DS-1800
The DS-1800 is the next-generation central monitoring system, succeeding our flagship DS-8900. With its ultra-slim design and a 27-inch full-color touchscreen, it displays up to 32 beds simultaneously and supports flexible layout configurations for up to 16 beds.
It offers up to 336 hours of continuous waveform recording and features advanced arrhythmia analysis with 28 detection parameters, including QT/QTc, Shock Index, and Atrial Fibrillation. The system also automatically calculates Early Warning Scores (EWS), supporting early intervention and efficient patient care.
Compact, powerful, and intuitive—the DS-1800 brings clarity and control to every clinical environment.
FEATURES
- 27" Full HD TouchscreenHigh-brightness, anti-fingerprint capacitive panel ensures clear, responsive operation in clinical environments.
- Up to 32 Beds Displayed Monitor up to 32 patients on one screen; supports free layout configuration for 16 beds or fewer.
- 336 Hours of Waveform Storage Up to 14 days of full disclosure waveform data with optional SD card (FSD-64G).
- 28 Arrhythmia Types Detected Comprehensive algorithm includes AFib, VF, VT, QT/QTc and more—developed using Fukuda’s Holter expertise.
- Automatic Patient Scoring Supports EWS, NEWS2, and qSOFA—scored in real time to assist early response teams.
- Flexible User Interface Customizable layout, shortcut keys, and cross-station bed viewing for smoother workflows.
SPECS
Dimensions
660 (W) × 473 (H) × 210 (D) mm ±10 mm
Weight
13 kg ± 3 kg
